• U·net includes a powerful 2.4 GHz processor and 4 GB RAM
• It controls the system functions and manages the wired and wireless communication between the NEX·U·® components
• It has two CAN BUS ports (in/out) for wired communications with other NEX·U·® components and an ethernet port that allows U·net to connect to the shop LAN

U·net also includes the U·track software
U·track is a powerful web-based software package that gives you full control of fluid usage and inventory. It is a web-based software that allows multi-user applications.  All PCs or tablets in the same network and in the same location can have access to U·track. U·track can work using any web browser.
Compatible with: Chrome, Firefox, and Microsoft Edge.

A bidirectional communication is established through web service. NEX·U·® offers multiple operating modes depending on the customer needs.

U·track benefits:
• Simple and intuitive system set-up
• Simplified system maintenance (manage users, fluid inventory, etc.)
• Manage all the system hard-wired and wireless communication
• Generate a wide variety of reports, which can be easily exported to CSV and txt formats
• Record and manage Validated Preset Transactions (required for operating with U·Vision+)
• Transform any PC terminal in the workshop into a NEX·U·® virtual keypad license required

U·track also contributes to increasing your operations efficiency and profitability:
• Keeps control of the quantity of fluid dispensed in the system
• Improves inventory accuracy, generating automatic warnings and email notifications for reorders at critical predefined inventory levels
• Generates a variety of reports, to help you track dispense information such as date and time, technician, work order, fluid dispensed, volume delivered, etc

• 3110-100 – U·dat power+ keypad NEX·U·® access keypad with 7″ color screen and QWERTY keypad
  One USB, one RS232 and in/out CAN BUS ports. 110 – 240 V AC, with a 320 W transformer to open
  8 solenoid valves, supports CAN BUS communications
• 3110-104 – U·dat power keypad NEX·U·® access keypad with 7” color screen and QWERTY keypad.
  One USB, one RS232 and in/out CAN BUS ports. 110 – 240 V AC, with a 75 W transformer to open 2 solenoid
  valves, supports CAN BUS communications.

• U·dat includes a 7” full color graphics display and a complete QWERTY keypad
• U·dat supports CAN BUS cable communications that carry data and power to open the solenoid valves in the system. “Plug-and-play” connectors make cabling easy
• U·dat includes the transformer required to simultaneously open up to 8 solenoid valves

NEX·U·® adapts to the way you work, and it offers multiple possibilities for accessing the system.
Technicians can access NEX·U·® via:
• U·dat: System access keypad
• U·vision+
• Any device connected to the same network as U·net (laptop, smartphone or tablet) Compatible with: Chrome, Firefox, and Microsoft Edge.

U·dat connection panel
All wired connections can be quickly and easily done without opening the U·dat.
It is possible to connect a printer, an external RFID reader, or a barcode reader to the RS-232 port.

Use the U·vision to display reel, battery and delivery. Use U·vision+ to dispense and to interact with the system.
• Modular design fits standard non-metered control handle
• Display dispensed data
• Display and input data
• Control handle not included, go to non-metered handles and chose the one that fits your needs.

U·vision

Hand-held display module to fit a Balcrank oil control handle. Includes a backlight display connected via Bluetooth® with a U·valve, U·meter+ or U·count module and it displays the following parameters:
• Hose reel (fluid outlet number and fluid dispensed type)
• Battery life and Bluetooth® signal strength
• Volume delivered and operation progress
• Solenoid valve open or closed

U·vision+

U·vision+ includes a six-button keypad and it can replace the U·dat keypad for data entry in the system as it allows the following operations:
• User access through PIN entry
• Scroll through existing open job orders to select the one corresponding to each operation or enter the job order number (digits only)
• Enter the volume of fluid to be dispensed
• Confirm fluid type and transaction

3110-115 U·valve meter, solenoid valve and electronic module. Includes Bluetooth communication for connecting to a U•Vision or U•Vision+
3110-114 U·valve+ meter, solenoid valve and electronic module. Includes Bluetooth connection to a U•Vision or U•Vision+ and WiFi for data transmission to other components in the system.

• Reduces installation time and eliminates the risk of leaks when using separate components
• It has a large, high visibility LED display which shows the U·valve number assigned in the system and the U·valve operation
• Four different LED lights that show the U·valve operation for diagnosis and two buttons for system configuration
• U·valve supports CAN BUS cable communication that transmits data and the electric power required to open the solenoid valve and Bluetooth® connection to a U·vision or a U·vision+ fluid handle with display
• U·valve+ includes Wi-Fi® communications for data transmission to other system components

NOTE: U·meter+ includes Bluetooth® connection to a U·vision or a U·vision+ module.

• The meter has an LED display showing the U·meter number assigned in the system, four different LED lights that show the U·meter operation for diagnosis and two buttons for system configuration
• Equipped with fast connection in/out CAN BUS terminals
• Available in different materials and sizes to match different applications

U·count fluid control module includes a high visibility LED display and the software required to function with the rest of the NEX·U·® system components.

The LED display shows the number assigned in the system and four different LED lights show the operation of the valve for diagnosis and two buttons for system configuration. U·count supports CAN BUS hard-wired communication that transmits data and power required to open the solenoid valve, for data communication with other system components and Bluetooth® to communicate with a U·vision or U·vision+ handle.

U·view has remote, high visibility, LED display that shows the volume delivered through various U·valves (no simultaneous operation supported). U·view supports Wi-Fi® and hardwired communication.

U·count

The U·count allows the use of external solenoid/meter combination to control almost any fluid:
• DEF
• Highflow Oil
• Grease
• WW Fluid
• Anti-freeze

U·view

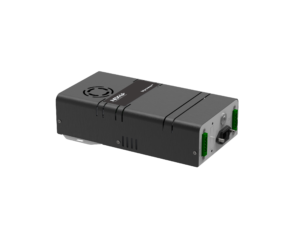

U·view requires hard-wired connection (data and power) to a U·dat keypad or to a 110 – 240 V AC power supply using a 24 V DC external transformer (U·power or U·power+).

NEX·U·® Compact does not support working within a network or PC connection.

The Keypad includes a 7” colored screen and a simplified version of the U·track software. The software included provides workshops with:
• Full control of bulk stored fluid usage.
• Inventory control using declining balance method. NEX·U·® Compact will give a warning signal once a certain inventory is reached, and restricts access to those outlets that have run out of inventory.
• Ability to generate full reports in CSV format that can provide useful management information.

3110-101 NEX·U·® Compact 75  NEX·U·® Compact 75. With a 75 W transformer for opening up to 2 solenoid valves and dispensing 2 fluids

3110-103 NEX·U·® Compact 320  NEX·U·® Compact 320. With a 320 W transformer for opening up to 8 solenoid valves and dispensing 8 fluids

NEX·U·® MOBILE can work with any NEX·U·® fluid meter: U·valve; U·meter or U·meter+ with 24 V DC solenoid valve and filter.

Standard U·count and U·pulser solenoid valve are compatible with NEX·U·® Mobile as long as they are connected to a 24 V DC solenoid valve.

NEX·U·® Mobile Keypad 24 V DC keypad or opening up to 8 solenoid valves and dispensing 8 fluids

U·pulser high accuracy in-line pulse meter. Equipped with connection terminal and valve open indication light.

This meter does not have a display or function buttons and requires a 24 V DC solenoid valve.

Only for connection to a U·count module.

U·tank is a monitor module capable of controlling two tanks using digital or analog level gauges. Can be connected to solenoid valves to control pump operation, and to external warning devices.

U·tank has two independent graphic displays and level bars, where the inventory available in each tank can be checked. It also has a set-up keypad for inventory adjustment if required (1).

The number of input and output ports are:
• One analog input per tank for a pressure probe with 4-20 mA or 0-10V
• Three digital inputs per tank for a low, intermediate or high-level probe (1)
• One output per tank for a solenoid valve to control air supply to each pump
• One output per tank for an electro-pneumatic valve to prevent tank overfill
• One output for controlling an air solenoid valve to stop the air supply to all pumps when the workshop is closed
• One output per tank for controlling a flash warning light or an acoustic alarm

U·tank supports CAN BUS wired communication with other NEX·U·® system components plus Wi-Fi® with optional CAN BUS to Wi-Fi® converter.

(1) The use of digital probes does not allow real-time inventory monitoring. NEX·U·® will use declining balance for inventory control and will require manual inventory adjustment when fluid is supplied to the tank.

Only for connection with U·dat, U·valve, or an adjacent U·meter. Requires a 24 V DC solenoid valve.
