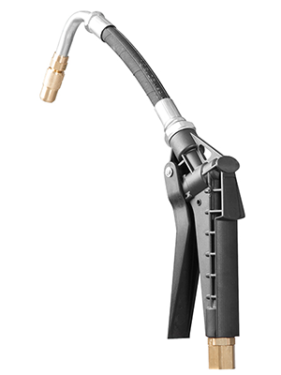

Water Based Fluids Metered
• Reinforced polyamide body and stainless steel valve mechanism
• Ergonomic-grip
• Includes brass inlet swivel 1/2″ NPT(F), flex- 90 extension and a 1/4 turn manual tip
Fluids Handled
Part No.:
3330-201 - Metered - Flex 90 1/4 turn - oil 3332-102
Markets Served:
Car and truck dealers, fast lube and maintenance shops, Fleets
Technical Data
Batch: Quarts, Pints, Gallons and Liters (in 0.01 increments)
+/- 0.5% of reading (lubricating oils)
8 gal/min (30 l/min)
725 psi (50 bar)
1/2" NPT(F)
Manual 1/4 turn for OIL = 0.705"
122 ºF (50 ºC)
2.2 lb (1 kg)
Anti-freeze, windshield wash solution, and water
Fiberglass reinforced thermoplastic, polyurethane rubber, Viton®, brass, and stainless steel
SB 3105
